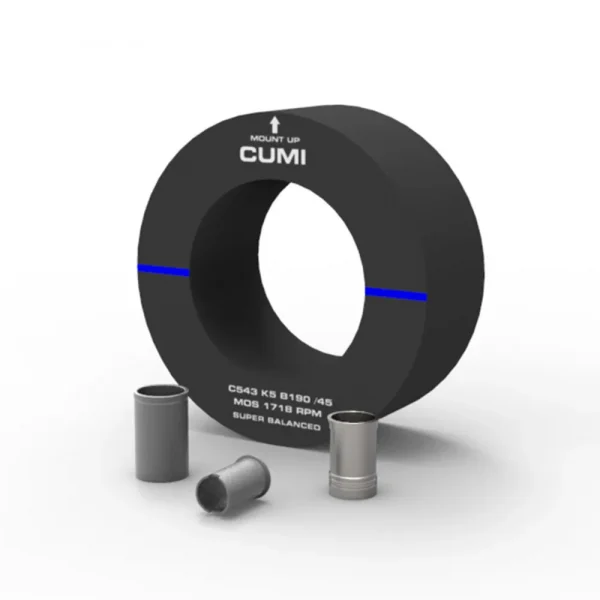

Centerless Grinding – Pistons & Liners

Good

An application which presents the most daunting challenges to any abrasive manufacturer. The range of requirements and priorities of this application varies from product to product which calls for an equally wide range of offerings to suit the same. Since in most of the Centerless applications, more than one wheel is mounted on the spindle, extremely tight tolerances need to be maintained in the geometry and densities of the wheels to ensure uniform wear patterns even if each wheel in the set is different. CUMI has the expertise, when it comes to Centerless applications thanks to the advanced manufacturing process, premium Abrasive grains and specially designed Vitrified, Resin and Rubber bond systems to suit the application needs. Customized solutions are provided for every application and specific requirement. Be it through-feed, end-feed or in-feed, CUMI wheels ensure that components are finished to stringent quality requirements.

Brand: CUMI

Information Material:

Product Catalogue

Type	Operation	Speed	Good	Better	Best
Piston Ring	Rough	35	C463 L5 VG	-	-
	Rough	50	-	-	-
	Finish	35	C60 L5 VG	-	-
	Finish	50	-	-	-

Type	Operation	Speed	Good	Better	Best
Grey Cast Iron	Rough	35	C543 K5 B190	-	C543 J7 B190K
Grey Cast Iron	Rough	50	C543 K5 B190/50	-	C543 J7 B190K/50
SG Iron	Rough	35	-	C543 K5 B903	-
SG Iron	Rough	50	-	C543 K5 B903/50	-

CUMI Code	Grit Range	Diameter		Thickness		Hardness	Structure	Speed
CUMI Code	Grit Range	(mm)	(Inch)	(mm)	(Inch)	Hardness	Structure	(mps)
CUMISA	46 - 120	350 - 610	14 - 24	100 - 250	4 - 10	I - N	6 & 8	35, 50 & 63
50A / 50MA	46 - 120					I - N	7	35 & 50
65A	80 - 220					L	-	40
SA	46 - 120					I - N	5 - 7	35 & 50
9A	46 - 120					I - P	5 - 7	35 & 50
SBA	46 - 120					I - P	5 - 7	35 & 50
AA	46 - 120					I - P	5 - 7	35 & 50
DA	46 - 120			100 - 300	4 - 12	I - P	5 - 7	35 & 50
A	46 - 120					I - P	5 - 7	35 & 50
C	46 - 120					I - N	5 - 7	35 & 50
GC	46 - 120					I - N	5 - 7	35 & 50

Product Information

Features

- Unique set of combination wheels

- Unique grain combination

- Cork bond

- Wide range of bond system

Benefits

- Good surface roughness and higher productivity

- Superior surface roughness & luster

- Customize individual grinding needs

Advantages

- High stock removal

- Lower dressing frequency

- Burn free component

- Better productivity

- Excellent surface finish

Product Uses

Industries

Automotive

Applications

Centreless
