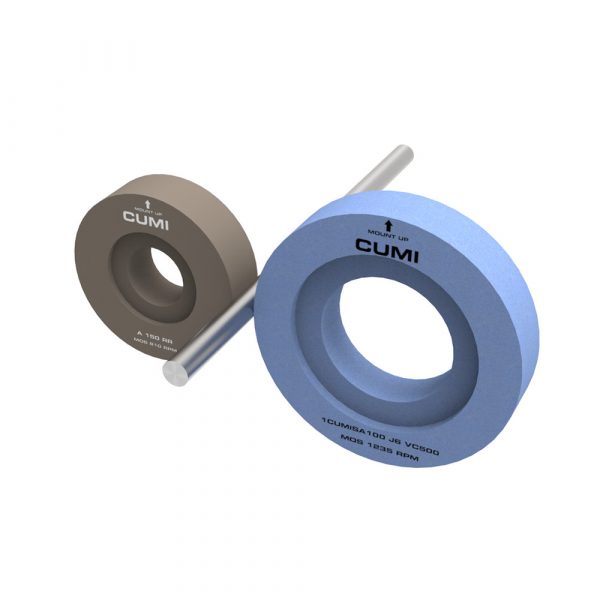

Centerless Grinding Wheel for Valve Stem

Centerless Grinding – Valve Stem

Good

An application which presents the most daunting challenges to any abrasive manufac­turer. The range of requirements and priorities of this application varies from product to product which calls for an equally wide range of offerings to suit the same. Since in most of the Centerless applications, more than one wheel is mounted on the spindle, extremely tight tolerances need to be maintained in the geometry and densities of the wheels to ensure uniform wear patterns even if each wheel in the set is different. CUMI has the expertise, when it comes to Centerless applications thanks to the advanced manufacturing process, premium Abrasive grains and specially designed Vit­rified, Resin and Rubber bond systems to suit the application needs. Customized solu­tions are provided for every application and specific requirement. Be it through-feed, end-feed or in-feed, CUMI wheels ensure that components are finished to stringent quality requirements.
Enquiry Icon
Brand: CUMI

Information Material:

Product Catalogue
Type Operation Speed Good Better Best
Mono Valve (Inlet Valve) Rough 35 A463 M3 V2018 A463 P5 V2020 9A463 M3 V887
50 A463 M3 V2018/50 A463 P5 V2020/50 9A463 M3 V887/50
Semi Finish 35 A60 L5 V2016 DA60 V2016 9A60 L5 V887
50 A60 L5 V2016/50 DA60 V2016/50 9A60 L5 V887/50
Finish 35 A100 J5 V10C DA100 J5 V2016 9A100 S5 V887
50 A100 J5 V10C/50 DA100 J5 V2016/50 9A100 S5 V887/50
Bi – Metal (Exhaust Valve) Rough 35 - - 9A463 M3 V887
50
Semi Finish 35 - - 9A60 L5 V887
50
Finish 35 - - 9A100 J5 V887
50
CUMI Code Grit Range Diameter Thickness Hardness Structure Speed
(mm) (Inch) (mm) (Inch) (mps)
CUMISA 46 - 120 350 - 610 14 - 24 100 - 250 4 - 10 I - N 6 & 8 35, 50 & 63
50A / 50MA 46 - 120 I - N 7 35 & 50
65A 80 - 220 L - 40
SA 46 - 120 I - N 5 - 7 35 & 50
9A 46 - 120 I - P 5 - 7 35 & 50
SBA 46 - 120 I - P 5 - 7 35 & 50
AA 46 - 120 I - P 5 - 7 35 & 50
DA 46 - 120 100 - 300 4 - 12 I - P 5 - 7 35 & 50
A 46 - 120 I - P 5 - 7 35 & 50
C 46 - 120 I - N 5 - 7 35 & 50
GC 46 - 120 I - N 5 - 7 35 & 50

Additional Details

Product Information

Features
- Unique set of combination wheels
- Unique grain combination
- Cork bond
- Wide range of bond system
Benefits
- Good surface roughness and higher productivity
- Superior surface roughness & luster
- customize individual grinding needs
Advantages
- High stock removal
- Lower dressing frequency
- Burn free component
- Better productivity
- Excellent surface finish

Product Uses

Industries
Automotive
Applications
Centreless
