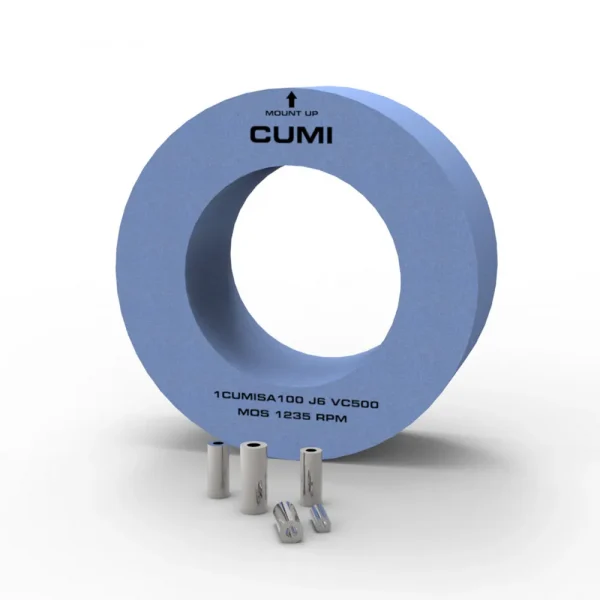

Centerless Grinding - Pins

Centerless Grinding – Pins

Good

An application which presents the most daunting challenges to any abrasive manufacturer. The range of requirements and priorities of this application varies from product to product which calls for an equally wide range of offerings to suit the same. Since in most of the Centerless applications, more than one wheel is mounted on the spindle, extremely tight tolerances need to be maintained in the geometry and densities of the wheels to ensure uniform wear patterns even if each wheel in the set is different. CUMI has the expertise, when it comes to Centerless applications thanks to the advanced manufacturing process, premium Abrasive grains and specially designed Vitrified, Resin and Rubber bond systems to suit the application needs. Customized solutions are provided for every application and specific requirement. Be it through-feed, end-feed or in-feed, CUMI wheels ensure that components are finished to stringent quality requirements.

Brand: CUMI

Information Material:

Product Catalogue

Type	Operation	Speed	Good	Better	Best
Gudgeon Pin	Rough	35	A463 L5 V10C	AA463 L5 V2020	1CUMISA461 K6 VCAE
	Rough	50	A463 K5 V45C	AA463 K5 V2020/50	1CUMISA461 K6 VC500/50
	Semi Finish	35	A60 L5 V10C	AA60 L5 V2020	1CUMISA601 K6 VCAE
	Semi Finish	50	A60 K5 V45C	AA60 K5 V2020/50	1CUMISA601 K6 VC500/50
	Finish	35	A100 J5 V10C	AA100 J5 V2020	1CUMISA100 J6 VC500
	Finish	50	A100 J5 V45C	AA100 J5 V2020	1CUMISA100 J6 VC500
	Fine Finish	35	-	A220 N5 VK12	-
	Super Finish	35	-	C320 P5 BYZ	A400 F5 RABX
	Super Finish	45	-	-	A400 G7 RBCX

CUMI Code	Grit Range	Diameter		Thickness		Hardness	Structure	Speed
CUMI Code	Grit Range	(mm)	(Inch)	(mm)	(Inch)	Hardness	Structure	(mps)
CUMISA	46 - 120	350 - 610	14 - 24	100 - 250	4 - 10	I - N	6 & 8	35, 50 & 63
50A / 50MA	46 - 120					I - N	7	35 & 50
65A	80 - 220					L	-	40
SA	46 - 120					I - N	5 - 7	35 & 50
9A	46 - 120					I - P	5 - 7	35 & 50
SBA	46 - 120					I - P	5 - 7	35 & 50
AA	46 - 120					I - P	5 - 7	35 & 50
DA	46 - 120			100 - 300	4 - 12	I - P	5 - 7	35 & 50
A	46 - 120					I - P	5 - 7	35 & 50
C	46 - 120					I - N	5 - 7	35 & 50
GC	46 - 120					I - N	5 - 7	35 & 50

Product Information

Features

- Unique set of combination wheels

- Unique grain combination

- Cork bond

- Wide range of bond system

Benefits

- Good surface roughness and higher productivity

- Superior surface roughness & luster

- customize individual grinding needs

Advantages

- High stock removal

- Lower dressing frequency

- Burn free component

- Better productivity

- Excellent surface finish

Product Uses

Industries

Automotive

Applications

Centreless
