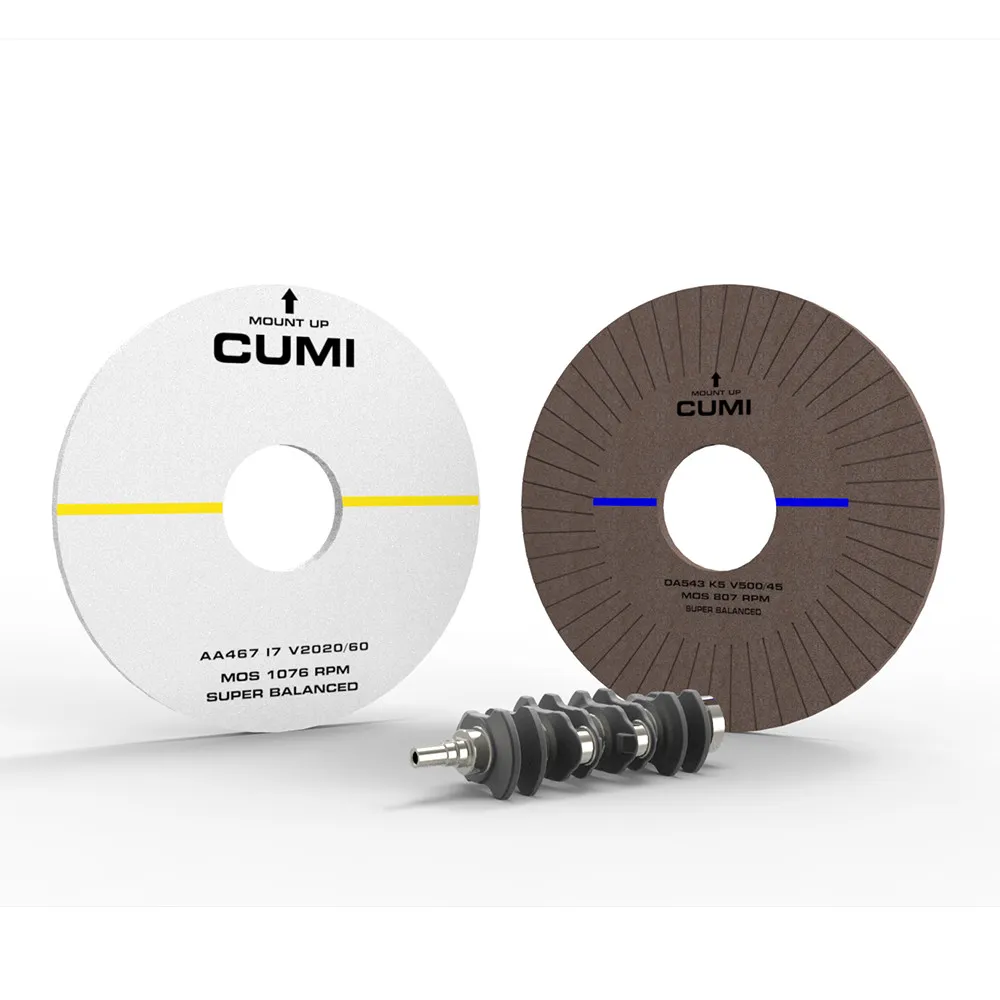

Crankshaft Grinding Wheels for Auto Components

Crankshaft Grinding Wheels – Auto Components

Good

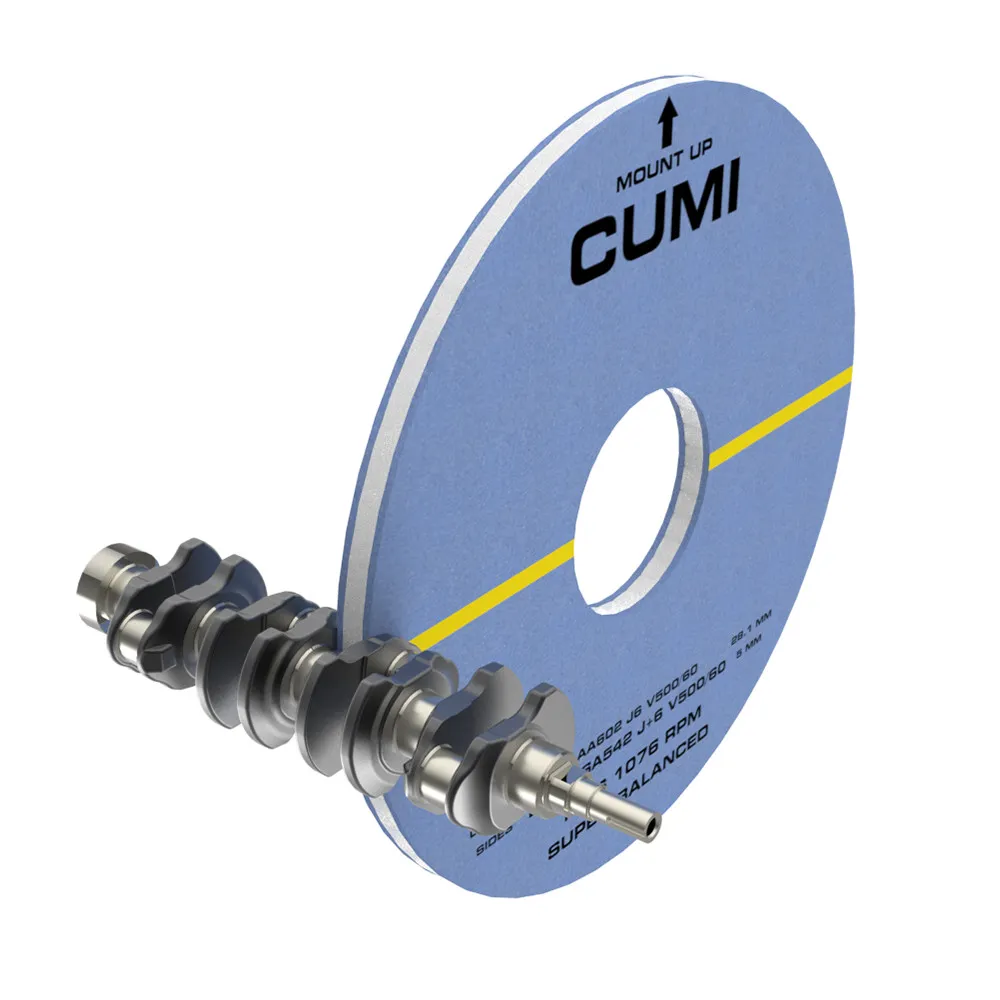

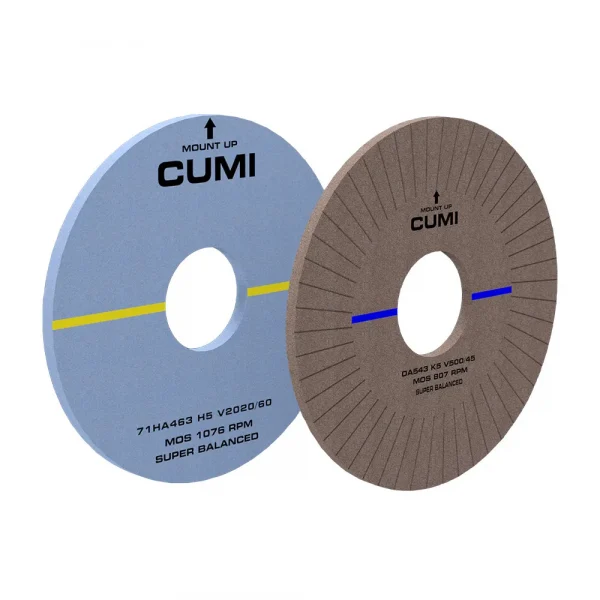

What sets Crankshaft grinding apart from the other cylindrical grinding process is the extremely crucial function of the crankshaft in itself. Crankshaft design requires meticu lous attention from material selection to the various hardening processes. Each part of the crankshaft is designed to have different hardness meeting specific demands of the application. Grinding of the shoulder region is a surface grinding operation, while the grinding of the pin is a cylindrical grinding operation. This poses a great challenge in desionino a wheel that performs both these processes efficiently. With the incorporation of the latest advances in Abrasive grains and Vitrified bond technology, CUMI provides Crankshaft grinding wheels that can face each of these chal lenges. The basic composition of the wheels are designed to give maximum life and excellent form holding while physical forms like slotted wheels, sandwich wheels, dual grade wheels etc. enable the wheels to grind without burns.

Brand: CUMI

Information Material:

Product Catalogue

Type	Operation	Speed	Good	Better	Best
Forged Steel	Soft	35	A463 L5 V10X	AA463 K5 V2020	12A54/60 J7 V2020
		50	A463 K5 V50X	AA463 K5 V2020/50	12A54/60 I7 V2020/50
		60	A463 K5 V2020/60	12A467 I7 V2020/60	11RA54/60 J7 V2020/60
	Hard - PV	35	A601 K5 V10X	SA601 K5 V2020	12A601 K5 V2020
		50	DA601 K5 V2020/50	AA601 K5 V2020/50	12A601 K5 V2020/50
		60	SA601 K5 V2020/60	12A601 K5 V2020/60	11RA54/60 J7 V2020/60
	Hard - CV	35	A463 L5 V10X	AA463 K5 V2020	12A467 J7 V2020
		50	A463 K5 V50X	AA463 K5 V2020/50	12A467 I7 V2020/50
		60	AA463 K5 V2020/60	12A467 I7 V2020/60	11RA54/60 J7 V2020/60
	For Soft shoulder & Hard Center Grinding	60	DA543 K5 V500/60 (sides)	5SA543 K5 V500/60	2CUMISA542 J+6 V500/60 (sides) / AA602 J6 V500/60(Center)
	For Soft shoulder & Hard Center Grinding	60	DA543 K5 V500/60 (sides)	5SA601 K5 V500/60
Cast Iron		upto 50	DA46 K5 V50	SA46 K5 V2018/50	AA46 K5 V2020/50
Nodular Iron		upto 50	AA46 L5 V2020/50	5SA46 L5 V2020/50	1CUMISA461 K6 V2020/50

CUMI Code	Grit	Diameter		Thickness		Speed	Hardness	Structure
		(mm)	(inch)	(mm)	(inch)			(mps)
11RA/51RA	46 - 100	600 - 1200	24 - 48	19 - 125	3/4 - 5	upto 60	J - M	5 - 8
12A
AA
DA
A
