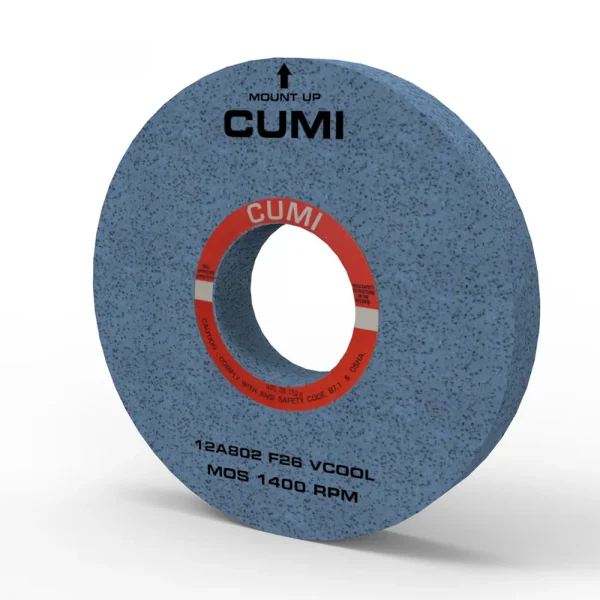

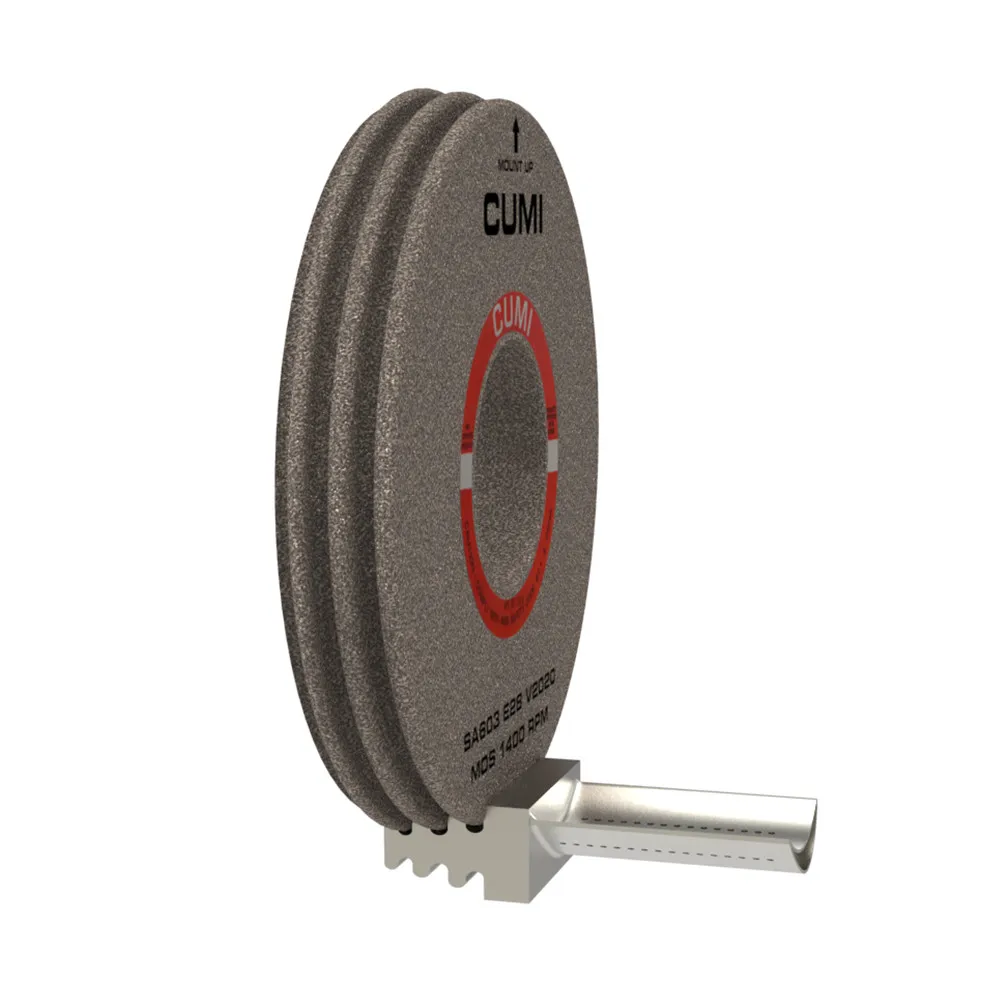

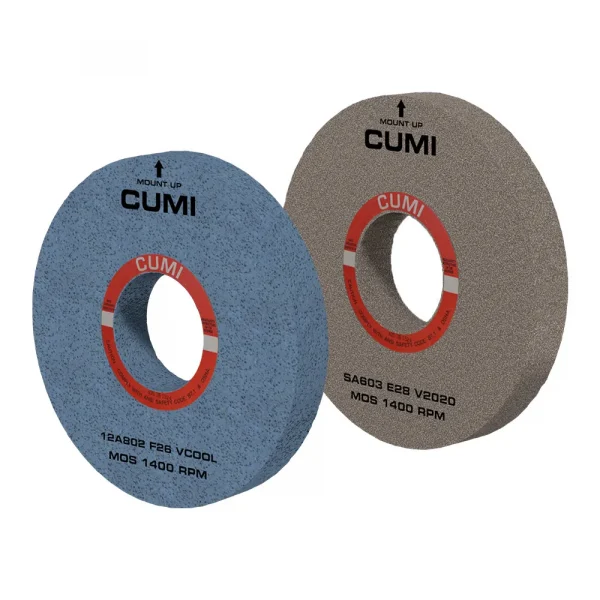

Creep Feed Grinding Wheels – Automotive

Good

Very high grinding allowances, and at the same time, superior surface finish requirements on the components; Although easy to describe, what is challenging in this application is the ability to maintain form, size and finish produced by the wheels while removing very high amount of stock. CUMI offers Creep-feed grinding wheels which are designed to perform well in high material removal operations without compromise on the form and finish. Be it continuous dressing or conventional intermediate dressing, when it comes to Creep-feed grinding, CUMI wheels achieve reduced dressing by superior form holding while removing material at high feed rates.

Brand: CUMI

Information Material:

Product Catalogue

Material	Component	Good	Better	Best
Alloy Steel	Tp Rotor	AA100 F29 VMC	12A100 E29 VCOOL	5SA803 F28 V2020
		Tp Rotor	AA80 F26 VMC	5SA803 F26 VCOOL	5SA803 F28 V2020
		Steering Rack	AA46 F26 VMC	AA463 F28 V2020	5SA463 E28 V2020
		Rocker arm	AA46 F26 VMC	AA463 F28 V2020	5SA463 E28 V2020
		Machine Guideway	AA46 J16 VF8P	RAA463 J23 VMPA	5SA463 F28 V2020

CUMI Code	Grit Range	Diameter		Thickness		Hardness	Structure	Speed
		(mm)	(inch)	(mm)	(inch)			(mps)
CUMISA	80 - 220	80 - 508	3 1/4 - 20	10 - 50	3/8 - 2	I - K	6 - 8	35 & 50
73CSA						G - J	10 - 15
RAA
