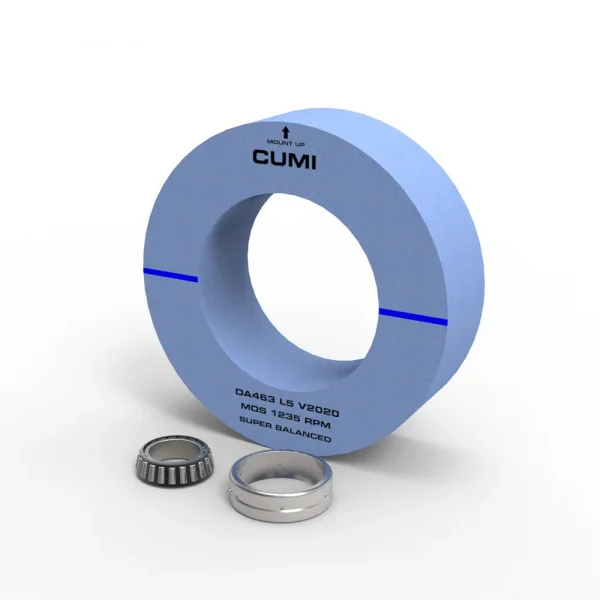

Centerless Grinding – Bearing Ring

Good

An application which presents the most daunting challenges to any abrasive manufacturer. The range of requirements and priorities of this application varies from product to product which calls for an equally wide range of offerings to suit the same. Since in most of the Centerless applications, more than one wheel is mounted on the spindle, extremely tight tolerances need to be maintained in the geometry and densities of the wheels to ensure uniform wear patterns even if each wheel in the set is different. CUMI has the expertise, when it comes to Centerless applications thanks to the advanced manufacturing process, premium Abrasive grains and specially designed Vitrified, Resin and Rubber bond systems to suit the application needs. Customized solutions are provided for every application and specific requirement. Be it through-feed, end-feed or in-feed, CUMI wheels ensure that components are finished to stringent quality requirements.

Brand: CUMI

Information Material:

Product Catalogue

Type	Operation	Speed	Good	Better	Best
Outer Diameter (TRB, SRB, CRB)	Rough & Finish	35	A463 L5 V10C	-	-
Outer Diameter (TRB, SRB, CRB)	Rough & Finish	50	A463 L5 V10C/50 A80 K5 V10C/50	DA54 I6 TDV876/50 DA80 I6 TDV876/50	55A54 I7 VC500/50 55A80 I7 VC500/50
Outer Diameter (Ball Bearing) 610 x 610 x 304.8 508 x 610 x 304.8 610 x 508 x 304.8	Roughing & Finishing	50	DA60 I6 TDV876	1CUMISA461 J6 VCAE/50	53MA461 J7 VC500/50
			DA80 I6 TDV876	1CUMISA541 J6 VCAE/50	53MA541 J7 VC500/50
			-	1CUMISA601 J6 VCAE/50	53MA601 J7 VC500/50
			-	1CUMISA801 I6 VCAE/50	53MA801 J7 VC500/50
	Roughing & Finishing	63	-	1CUMISA461 J6 VCAE/63	53MA461 J7 VC500/63
			-	1CUMISA541 J6 VCAE/63	53MA541 J7 VC500/63
			-	1CUMISA601 J6 VCAE/63	53MA601 J7 VC500/63
			-	1CUMISA801 I6 VCAE/63	53MA801 J7 VC500/63
Outer Diameter (Railway Bearing) 610 x 864 x 304.8	Roughing & Finishing	35	-	-	RAA60 J+4 V2016
			-	-	RAA80 J+4 V2016
			-	-	RAA100 I+4 V2016

CUMI Code	Grit Range	Diameter		Thickness		Hardness	Structure	Speed
CUMI Code	Grit Range	(mm)	(Inch)	(mm)	(Inch)	Hardness	Structure	(mps)
CUMISA	46 - 120	350 - 610	14 - 24	100 - 250	4 - 10	I - N	6 & 8	35, 50 & 63
50A / 50MA	46 - 120					I - N	7	35 & 50
65A	80 - 220					L	-	40
SA	46 - 120					I - N	5 - 7	35 & 50
9A	46 - 120					I - P	5 - 7	35 & 50
SBA	46 - 120					I - P	5 - 7	35 & 50
AA	46 - 120					I - P	5 - 7	35 & 50
DA	46 - 120			100 - 300	4 - 12	I - P	5 - 7	35 & 50
A	46 - 120					I - P	5 - 7	35 & 50
C	46 - 120					I - N	5 - 7	35 & 50
GC	46 - 120					I - N	5 - 7	35 & 50

Product Information

Features

- Unique set of combination wheels

- Unique grain combination

- Cork bond

- Wide range of bond system

Benefits

- Good surface roughness and higher productivity

- Superior surface roughness & luster

- customize individual grinding needs

Advantages

- High stock removal

- Lower dressing frequency

- Burn free component

- Better productivity

- Excellent surface finish

Product Uses

Industries

Bearing

Applications

Centreless

Ring Outer Race
