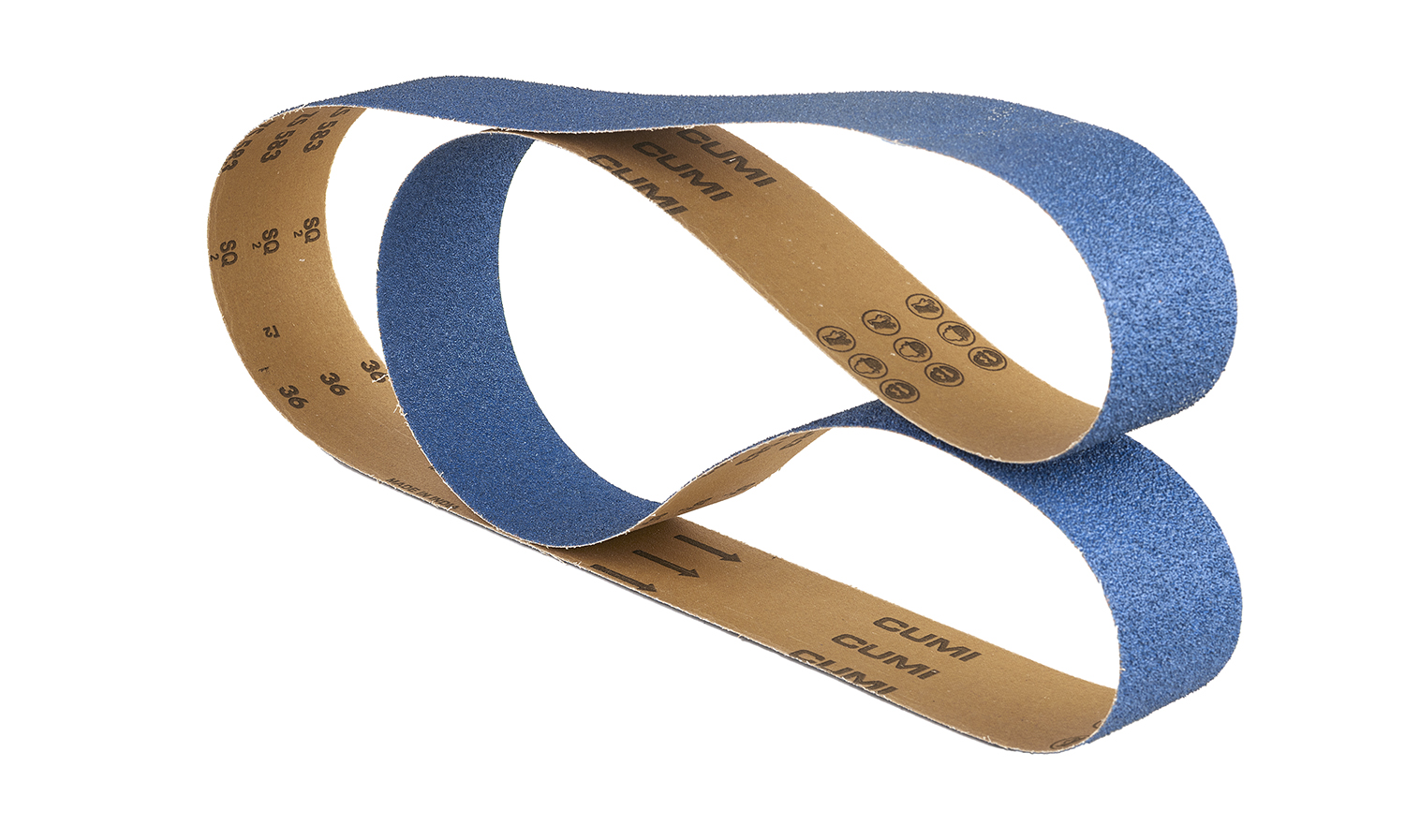

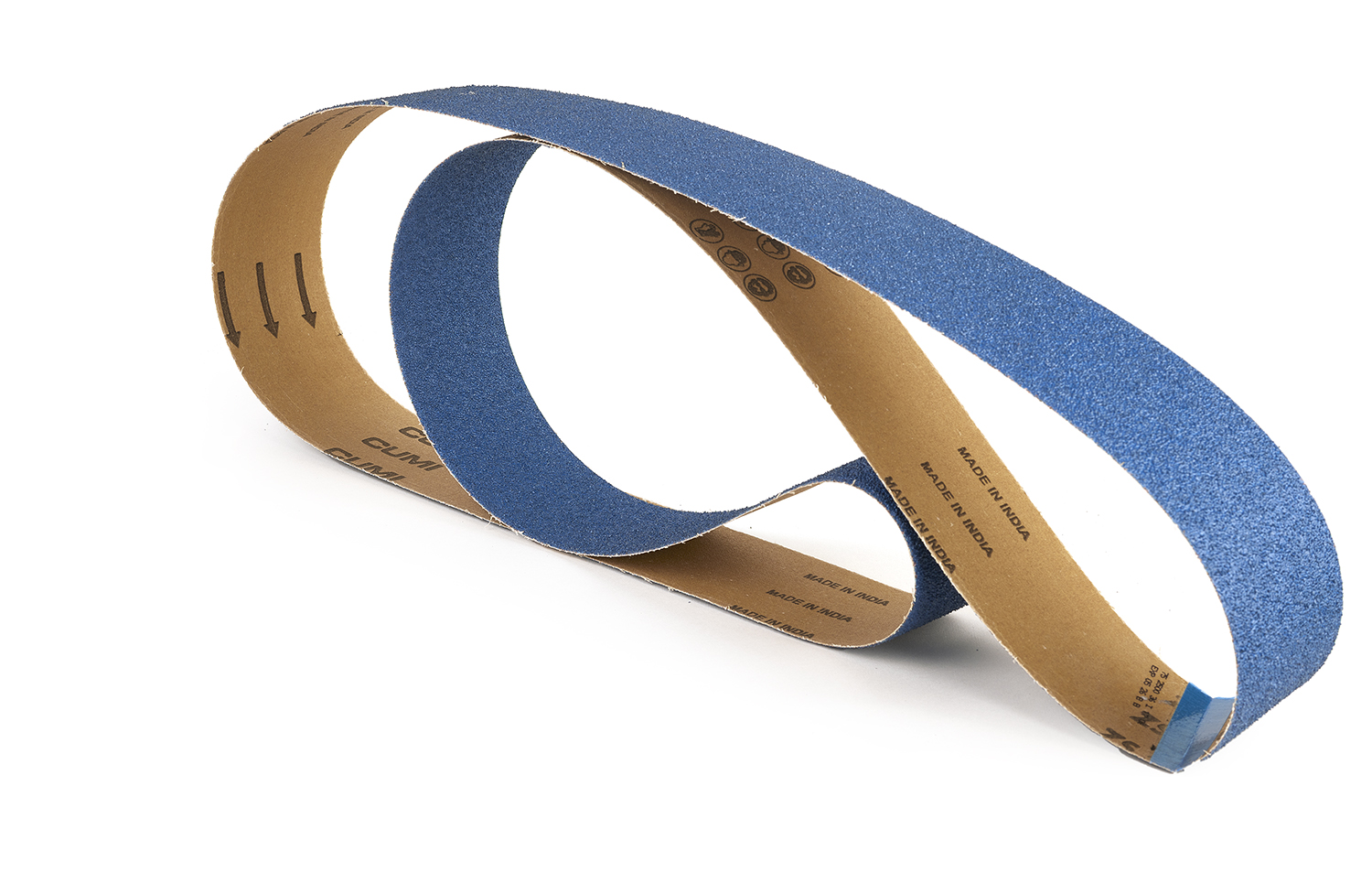

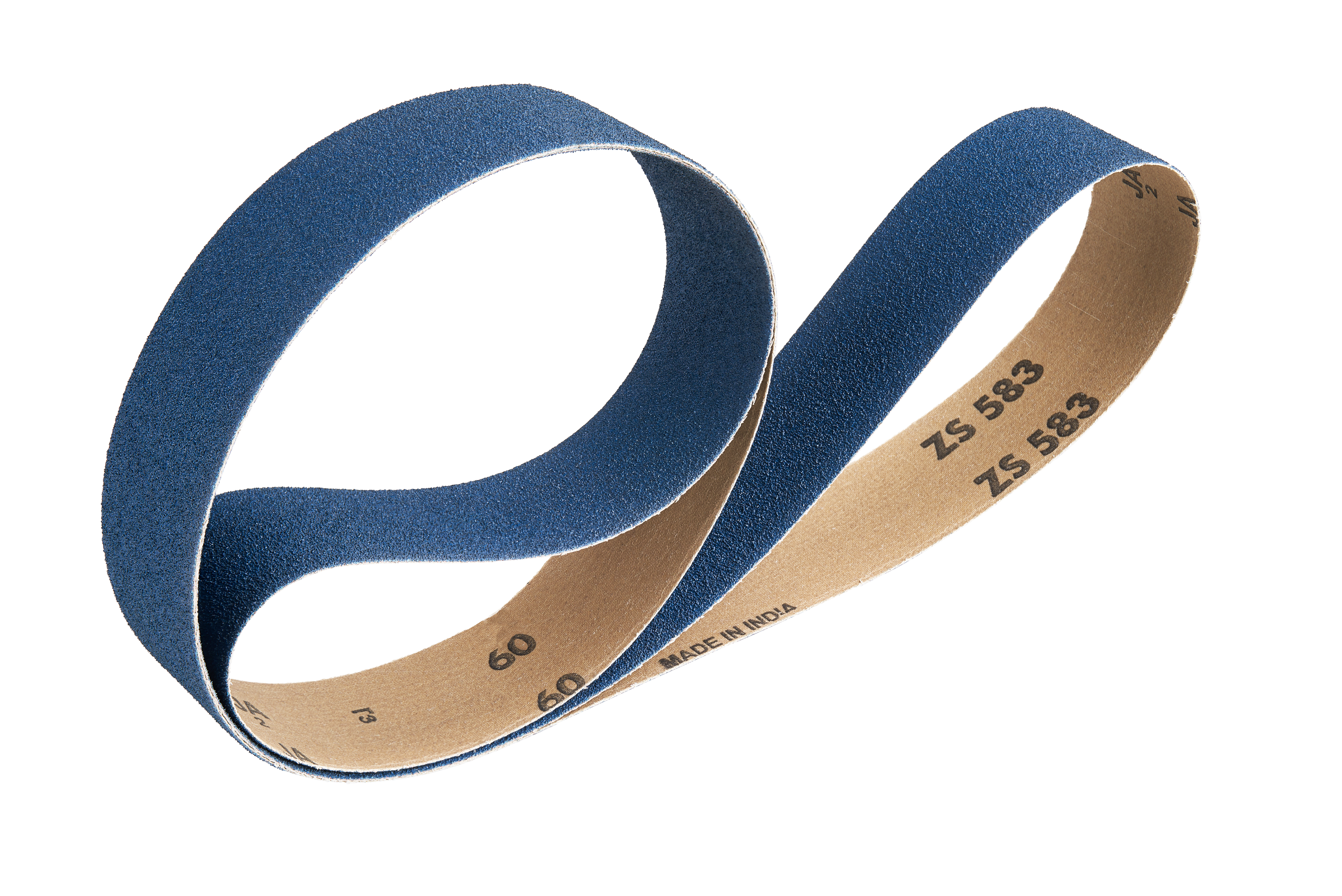

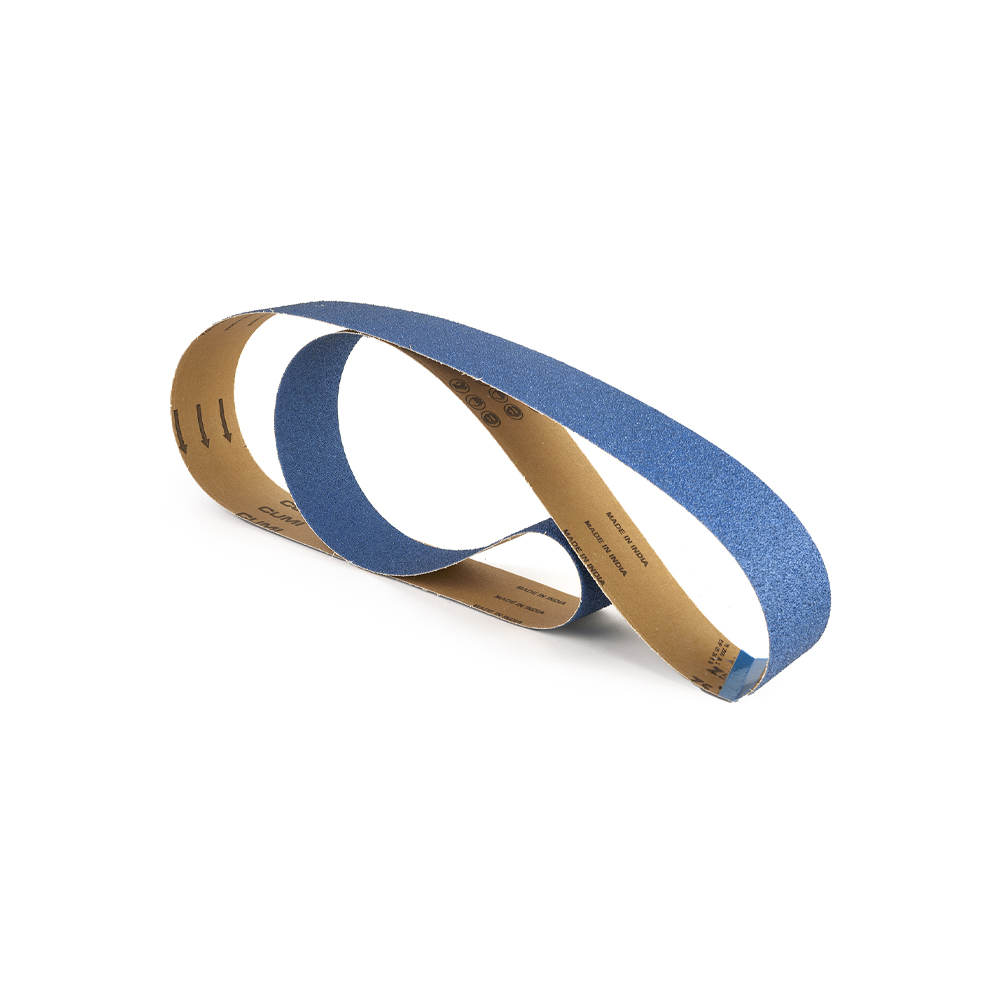

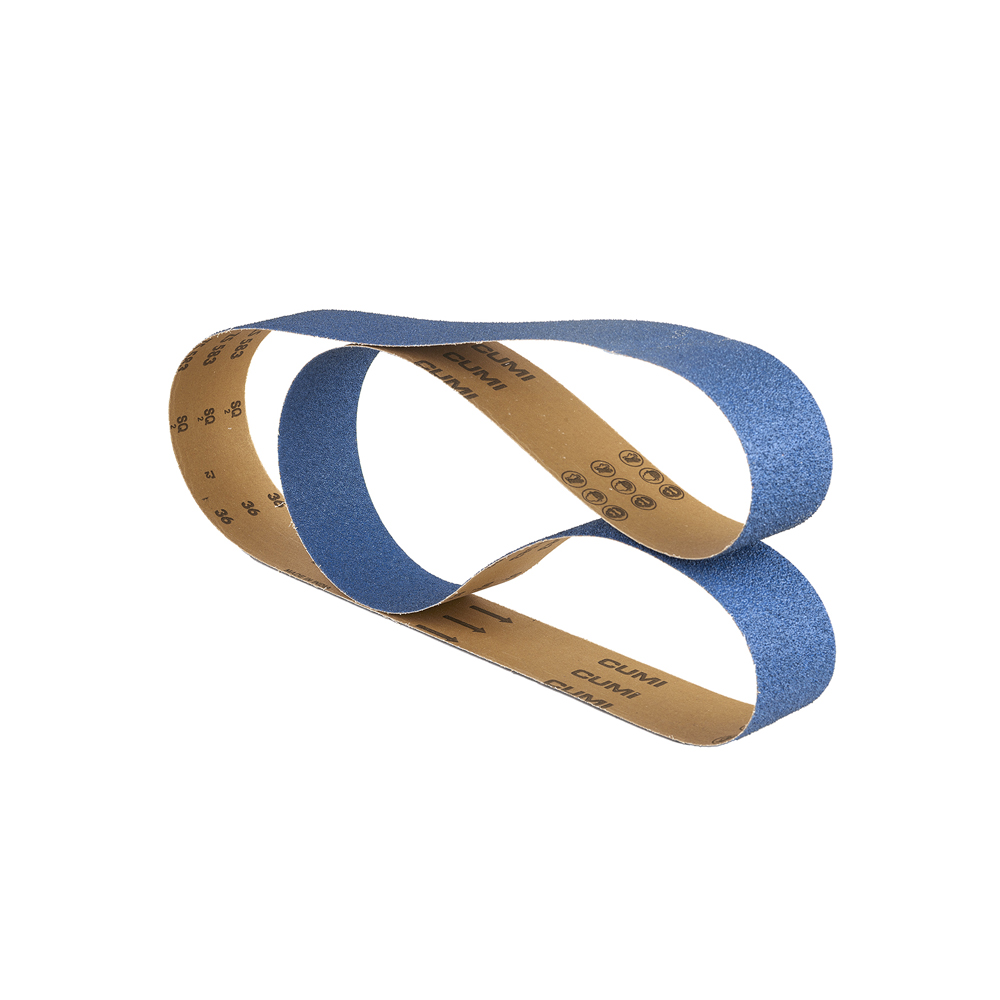

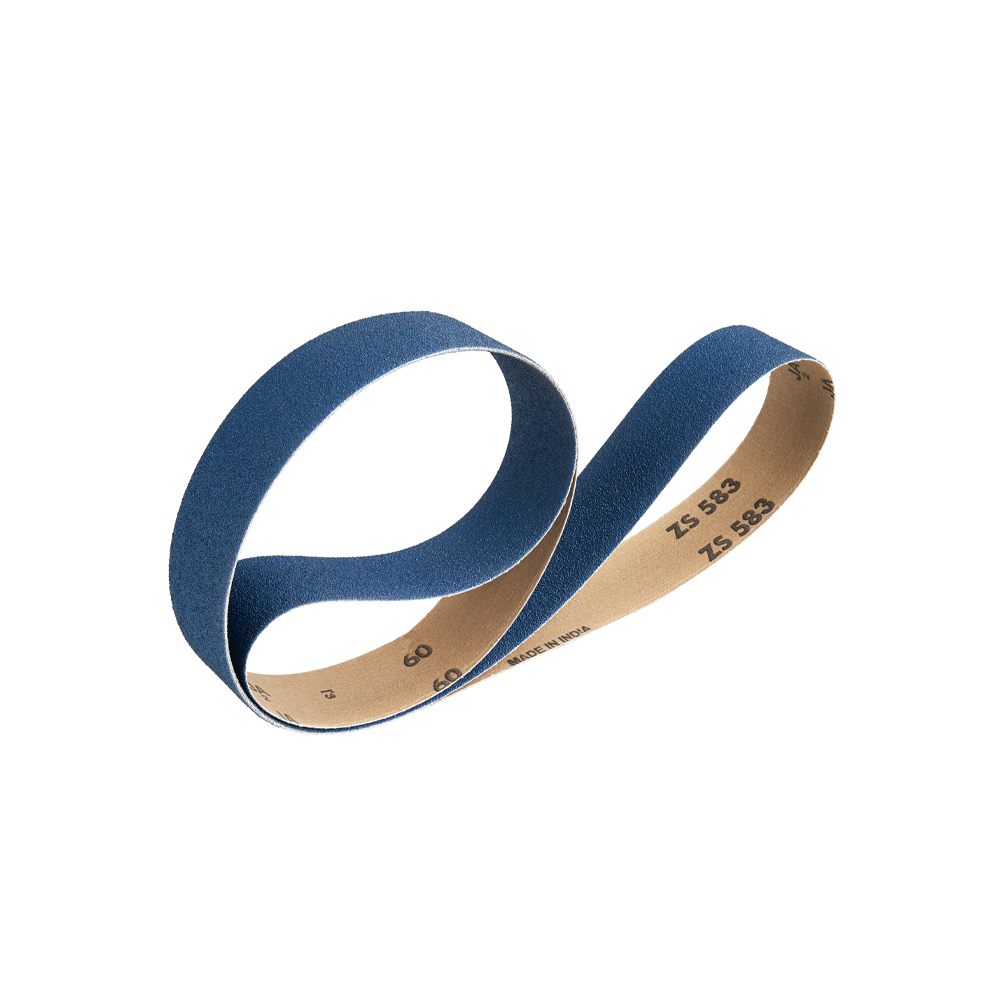

ZS 583 Zirconia YY Weight Cloth Belt

Good

Chrome vanadium and bright bar stainless don’t forgive a weak bond system. Run a standard zirconia belt on a semi-automatic grinder for two hours on chrome vanadium hand tool components — the grain starts pulling before the shift ends, cut rate drops, and the operator has to lean into the machine to hold the finish. The ZS 583 is built for that run and the one after it. New Generation Resin Bond locks the grain under sustained high contact pressure. Active Filler in the bond keeps the grinding zone cool — no discolouration on stainless, less fatigue for the operator. Tested in production: 20% better on mild steel, 25% better on stainless steel.

Key Specifications

Dimension Custom

Abrasive Grains Zirconia Aluminium

Coating Close coat

Backing material YY - weight heavy polyester

Grit Ranges

120

Brand: CUMI

Information Material:

Product Catalogue

Additional Details

Speciality Wet / Dry

Bond Type Resin

Grit Range Extra Coarse to Medium

Product Information

Features

- Premium self-sharpening zirconia alumina grain on YY-weight heavy polyester — fractures under pressure to expose fresh cutting edges, holds stock removal rate across full production runs

- New Generation Resin Bond — locks grain under sustained high contact pressure, resists moisture and cutting oil so bond integrity holds in wet-process grinding

- Active Filler technology in the bond system — reduces heat generation at the grinding zone, prevents loading on stainless, protects workpiece surfaces from thermal discolouration

- YY-weight heavy polyester backing with low elongation — holds dimensional stability on through-feed and backstand grinding of investment castings and precision components, custom dimensions available

Benefits

- Grain that doesn't pull before the shift ends — self-sharpening zirconia holds its cut on chrome vanadium and bright bar stainless through the full run, without the operator compensating with increased pressure

- Active Filler keeps the grinding zone cool on sustained stainless steel grinding — no heat tint on SS316L, no discolouration on chrome vanadium alloy steel

- YY-weight low elongation backing maintains belt dimensional stability on through-feed grinding of investment castings — belt stretch doesn't introduce variation into precision component finishing

- 20% better grinding performance on mild steel, 25% on stainless steel — tested in production on real machines, with operators running longer between belt changes and pushing less hard to hold the cut

Advantage

- Active Filler is the specification reason to choose ZS 583 over a standard zirconia belt for stainless and chrome vanadium grinding — without it, heat at the grinding zone is a function of belt age, not grinding parameters

- Tested on a semi-automatic belt grinder in a hand tool facility on chrome vanadium and on a pedestal grinder in a bright bar operation on stainless steel — real production conditions, not lab simulation

- Custom dimensions enable ZS 583 to be specified into proprietary and OEM grinding configurations across hand tools, bright bar, and investment casting production lines globally

Product Uses
