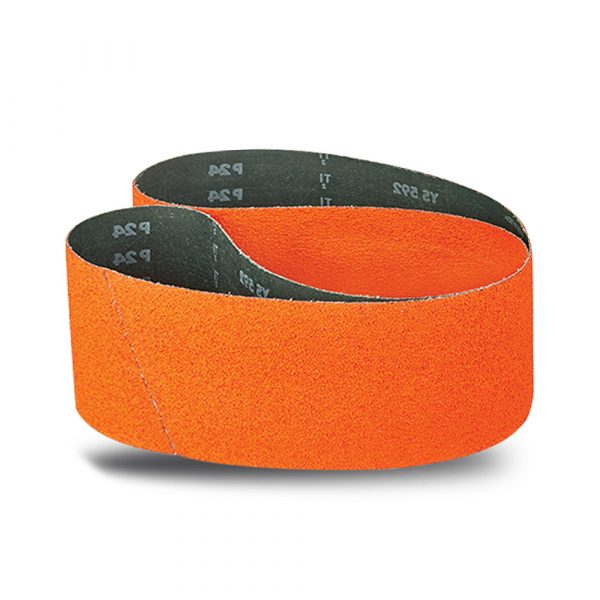

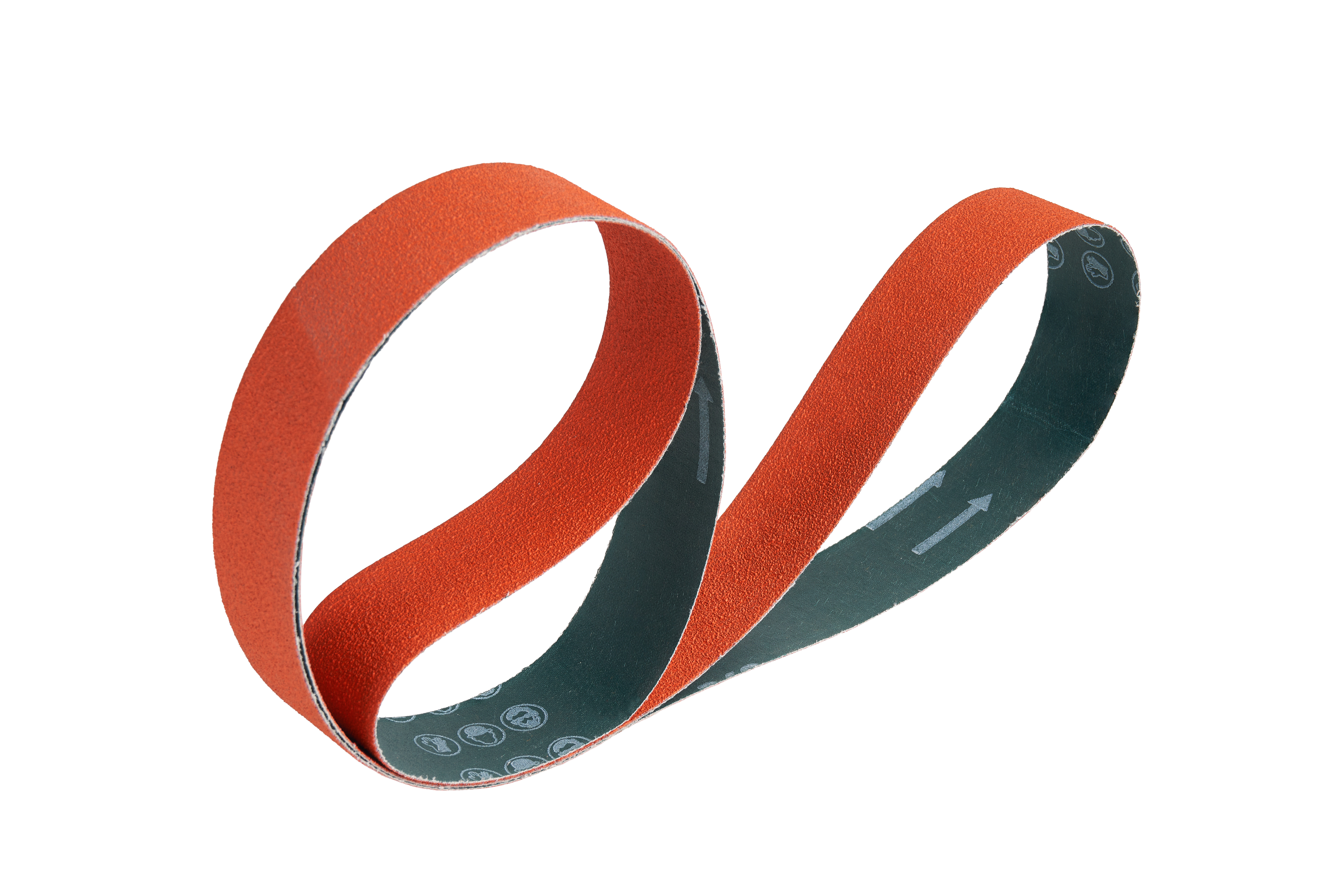

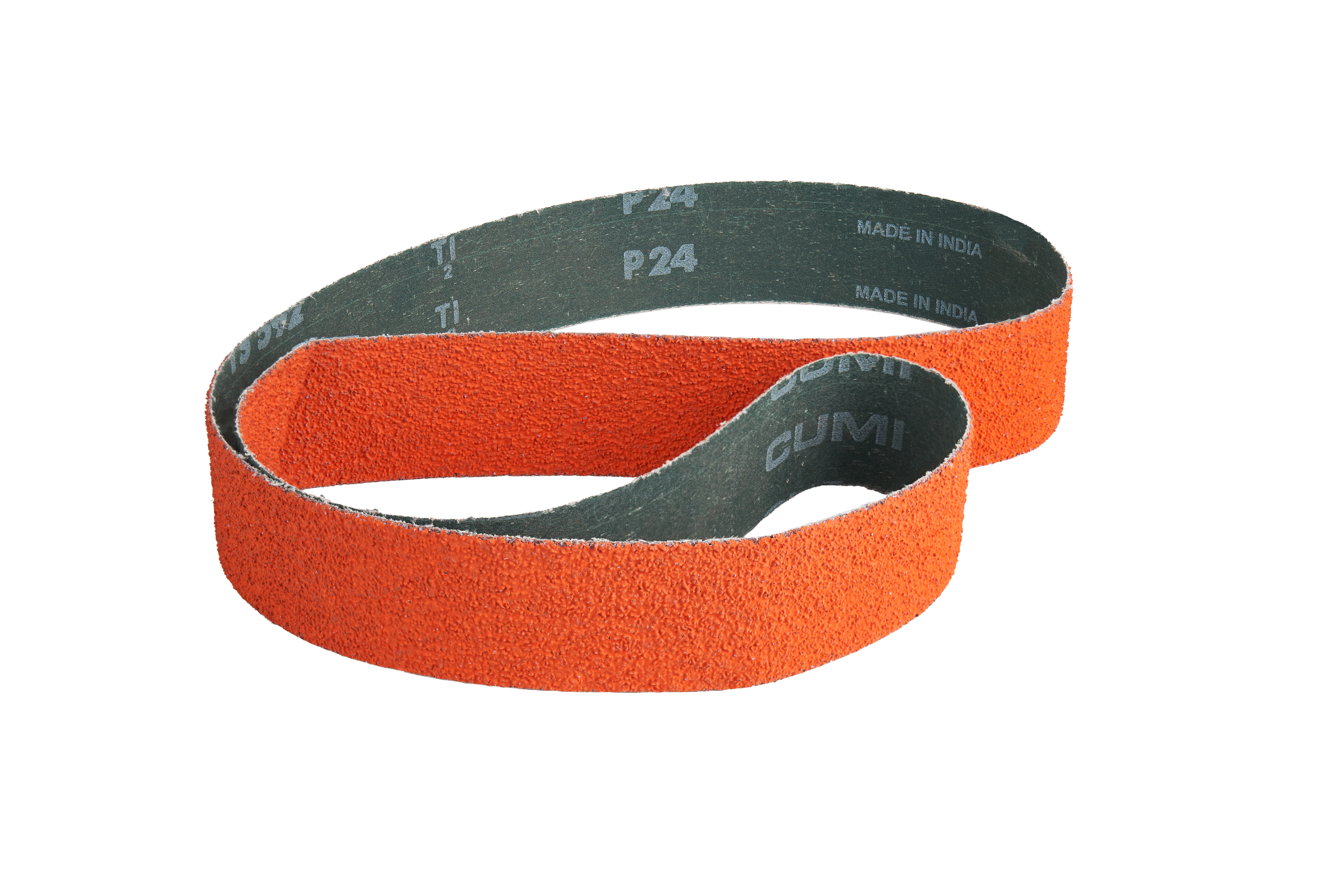

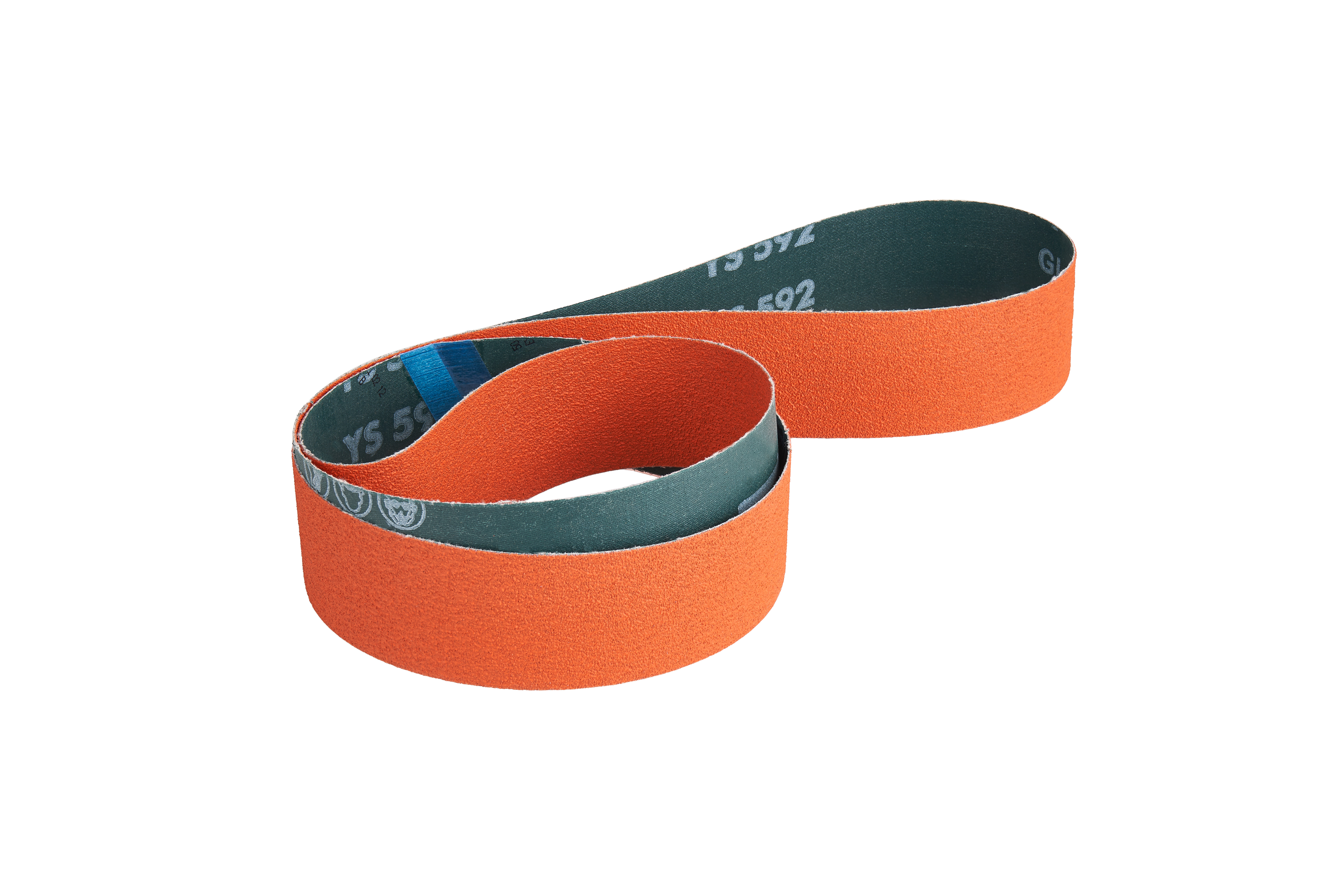

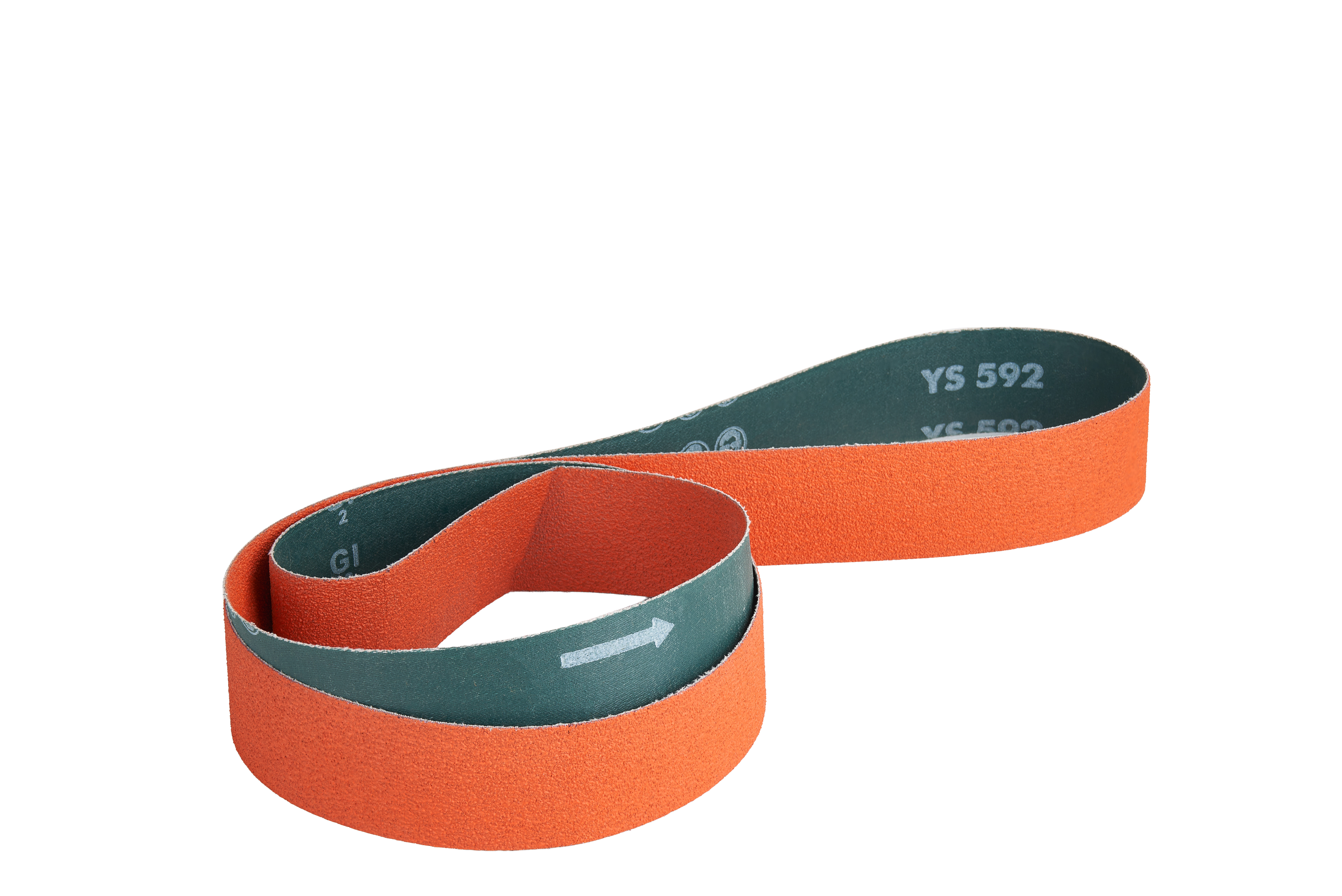

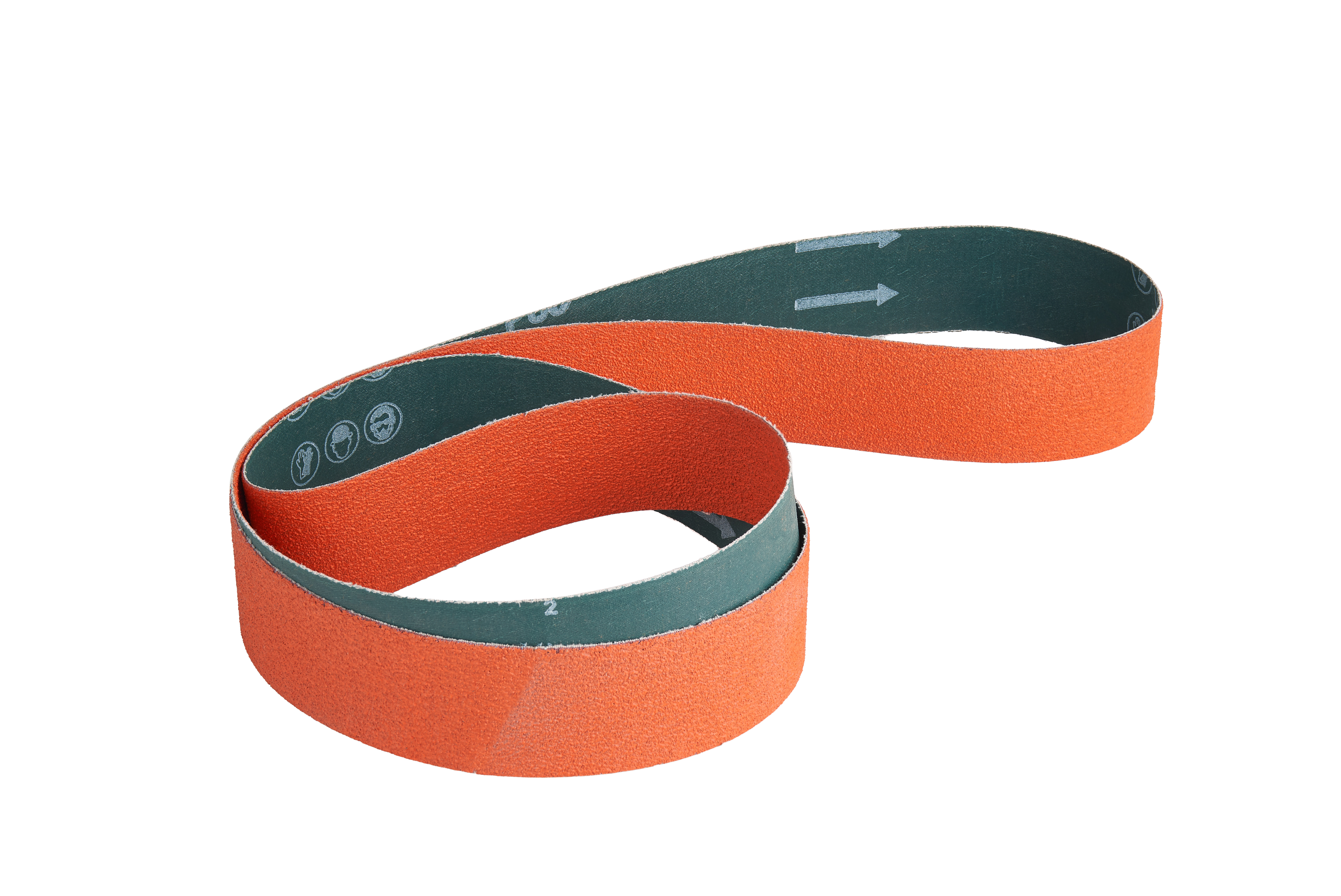

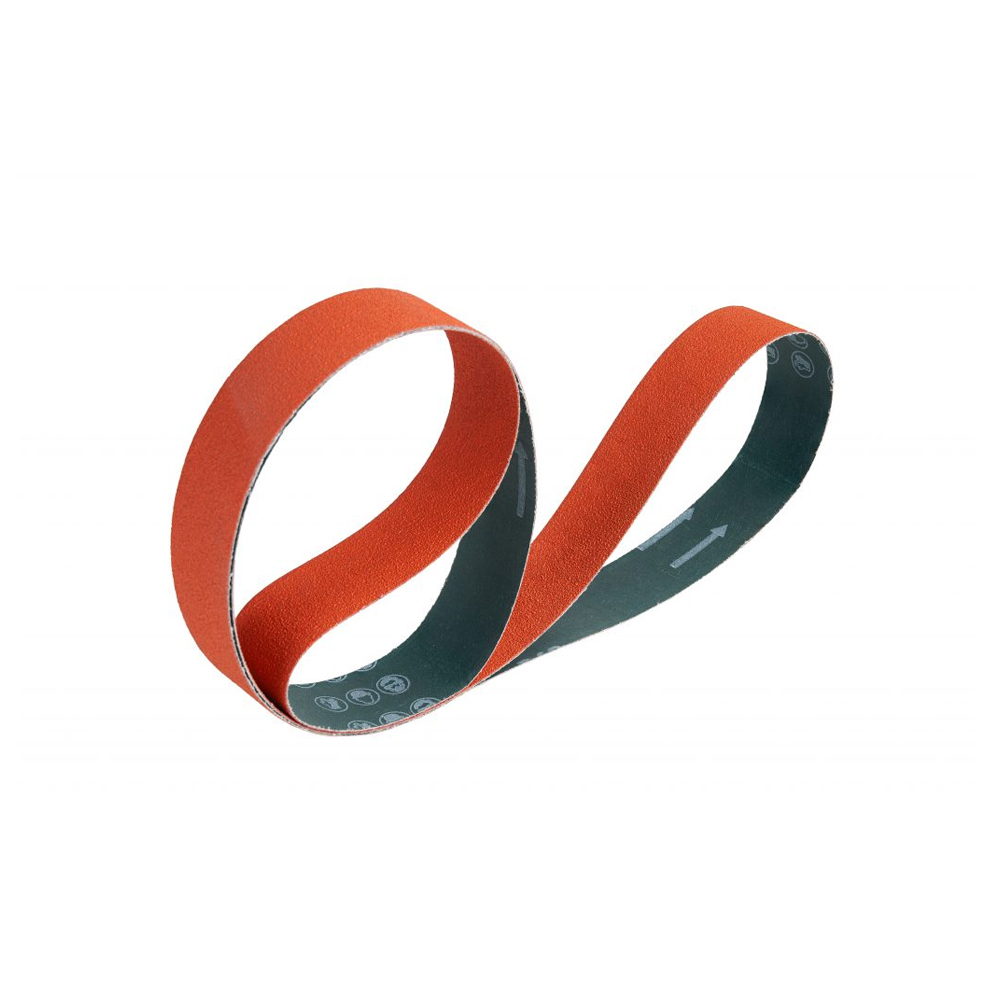

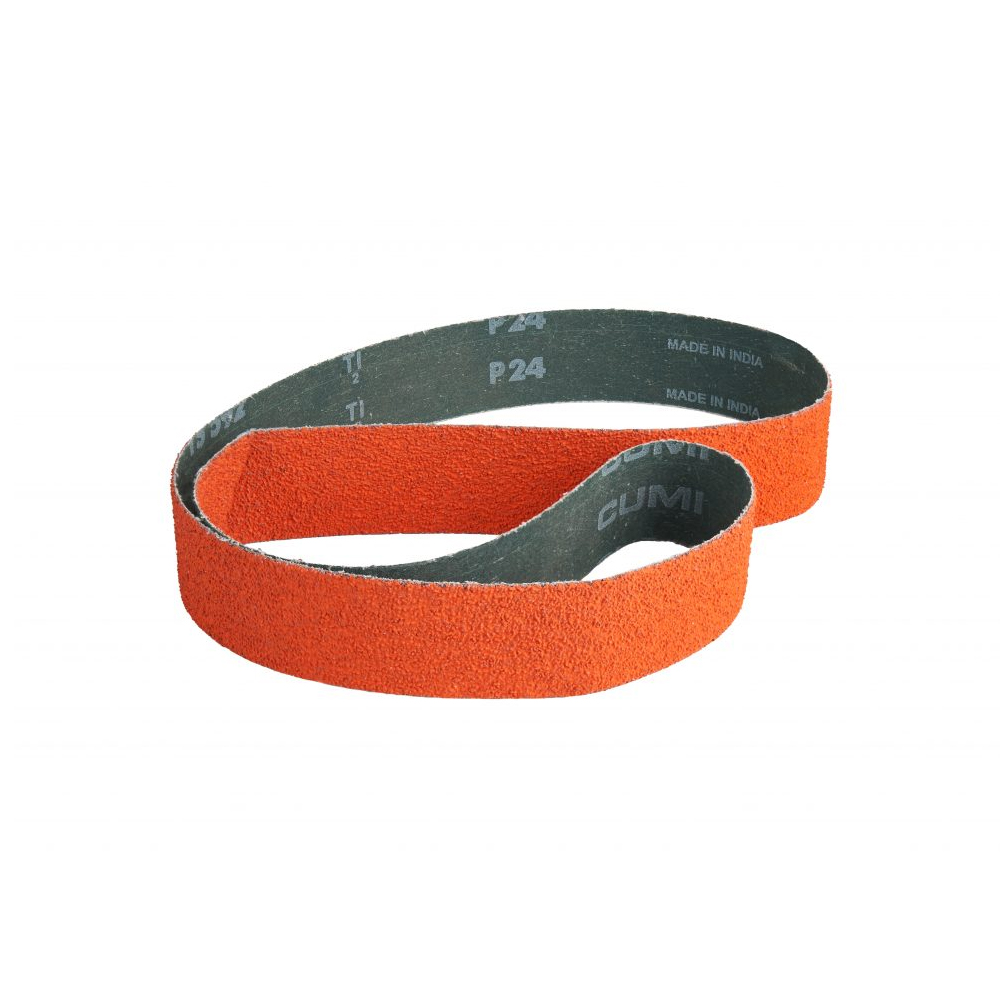

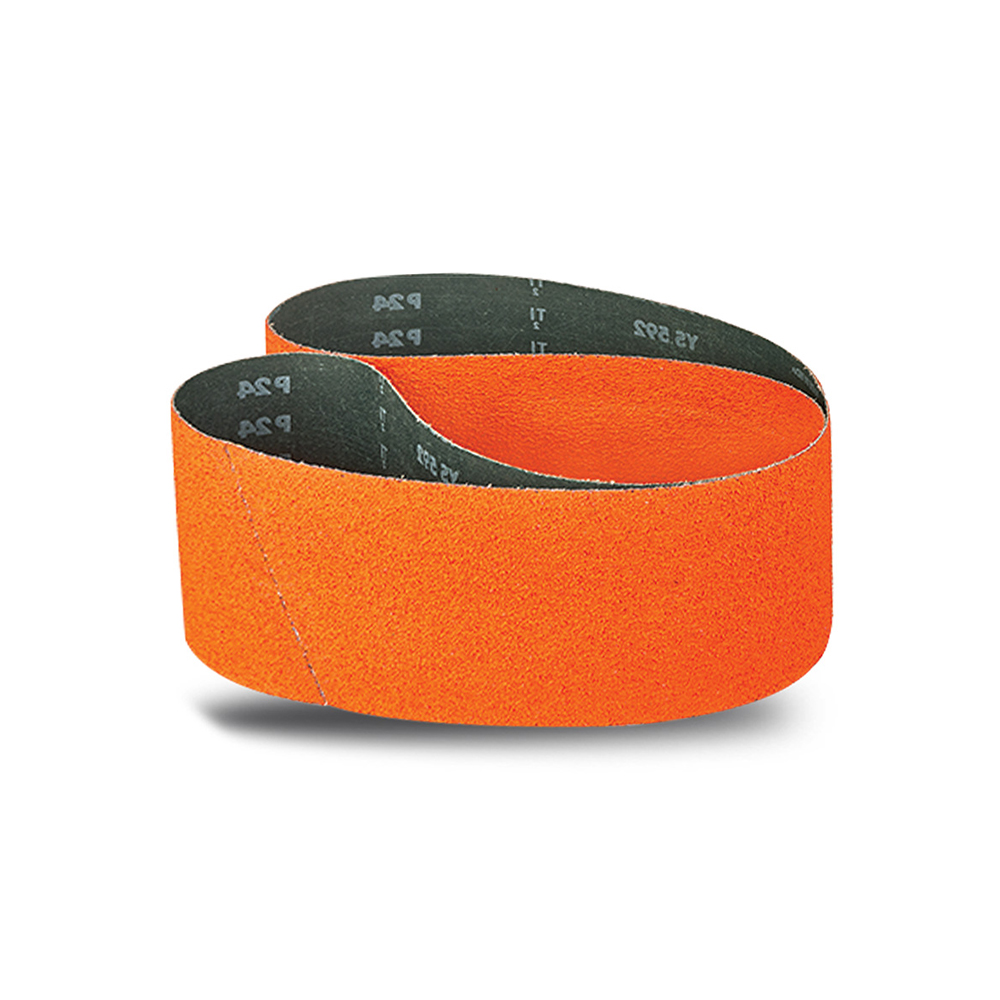

YS 592 Ceramic Y Weight Cloth Belt with Top Coat

Good

The YS 592 is built for the metals that expose every weakness in an ordinary belt — SS316L, Inconel, titanium. Nano-crystal grains fracturing at the micro-crystalline level keep the cut aggressive without generating the heat that causes tinting. The Top Coat handles the rest, keeping the interface cool enough that superalloys and stainless come off the machine clean across a full production run. Tested against competitors: 15% better grinding performance, measurably less fatigue at the grinder.

Key Specifications

Dimension Custom

Abrasive Grains Ceramic + Aluminium Oxide

Coating Close Coat

Backing Material Y - weight heavy polyester

Grit Ranges

100

120

Brand: CUMI

Information Material:

Product Catalogue

Additional Details

Speciality Super Size, Wet / Dry

Bond Type Resin

Grit Range Extra Coarse to Medium

Product Information

Features

- Nano-crystal ceramic grains that fracture at the micro-crystalline level, continuously regenerating sharp cutting edges under pressure — a structural property, not a coating effect

- Special Top Coat prevents capping and controls interface temperature on SS316L, Inconel, and titanium under sustained grinding pressure

- New Generation Resin Bond for optimal grain anchoring in wet and dry conditions — moisture and cutting oil don't compromise bond integrity

Benefits

- No glazing under high pressure — grain fractures before it dulls, so cut rate on Inconel and Ti-6Al-4V stays consistent from the first component to the last in a batch

- Top Coat keeps the interface cool enough that SS316L and superalloys don't develop heat tint — components come off clean, shift after shift

- New Generation Resin Bond holds grain through sustained load — fewer belt changes per shift on weld-removal and blending operations

- Less resistance at the grinder, lower vibration, more components per shift — cooler cutting is felt by the operator before it is measured on the workpiece

Advantages

- 15% better grinding performance than competitors, tested robotically on axle beam applications — a production number, not a controlled lab result

- Nano-crystal grain and Top Coat address both ceramic belt failure modes in one specification — grain dulling and thermal damage — most belts solve one, YS 592 solves both

- The specification of choice for aerospace fabricators and SS fabrication shops working to EN 10088 surface integrity requirements across Europe, North America, and the Middle East
